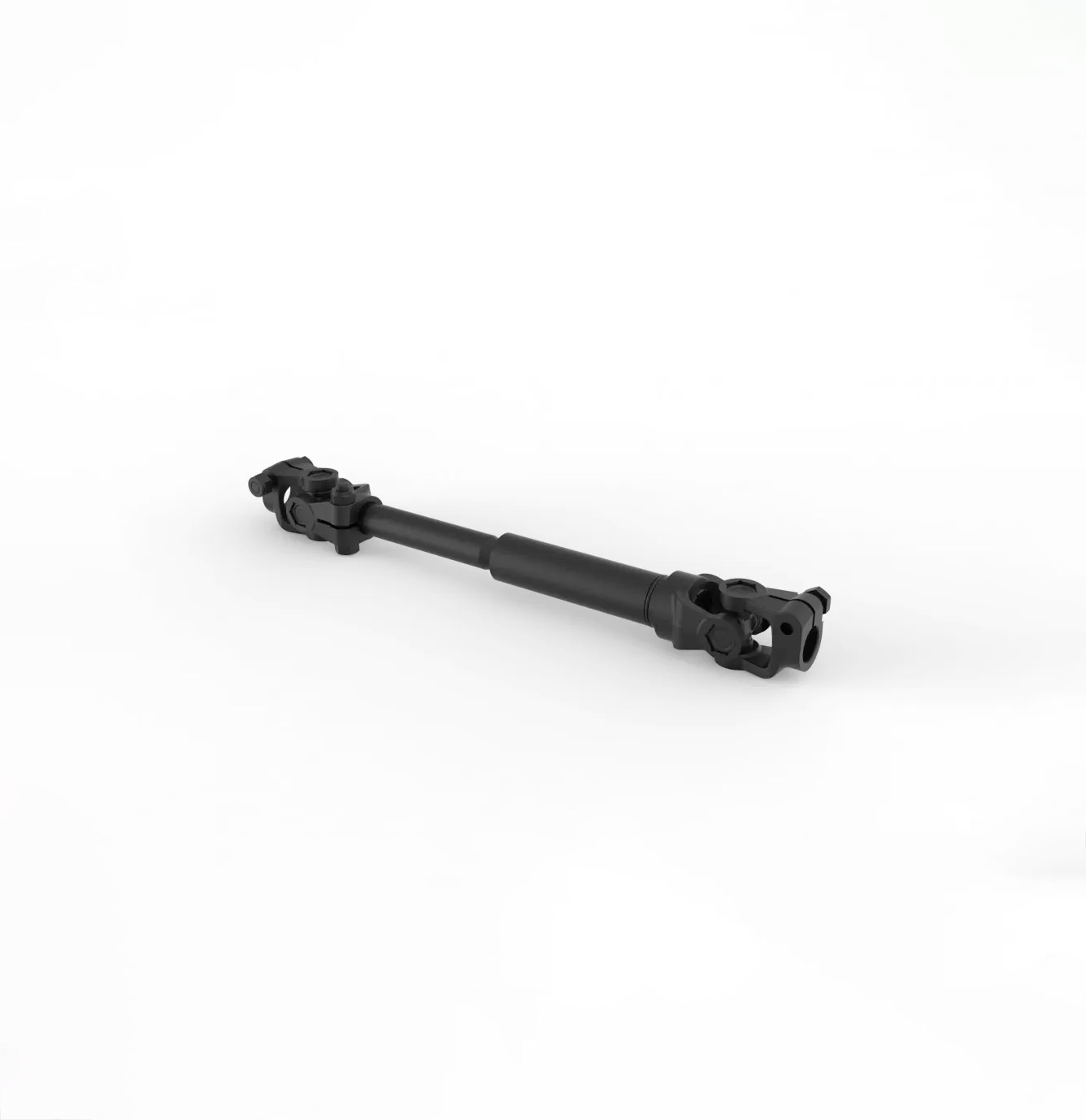

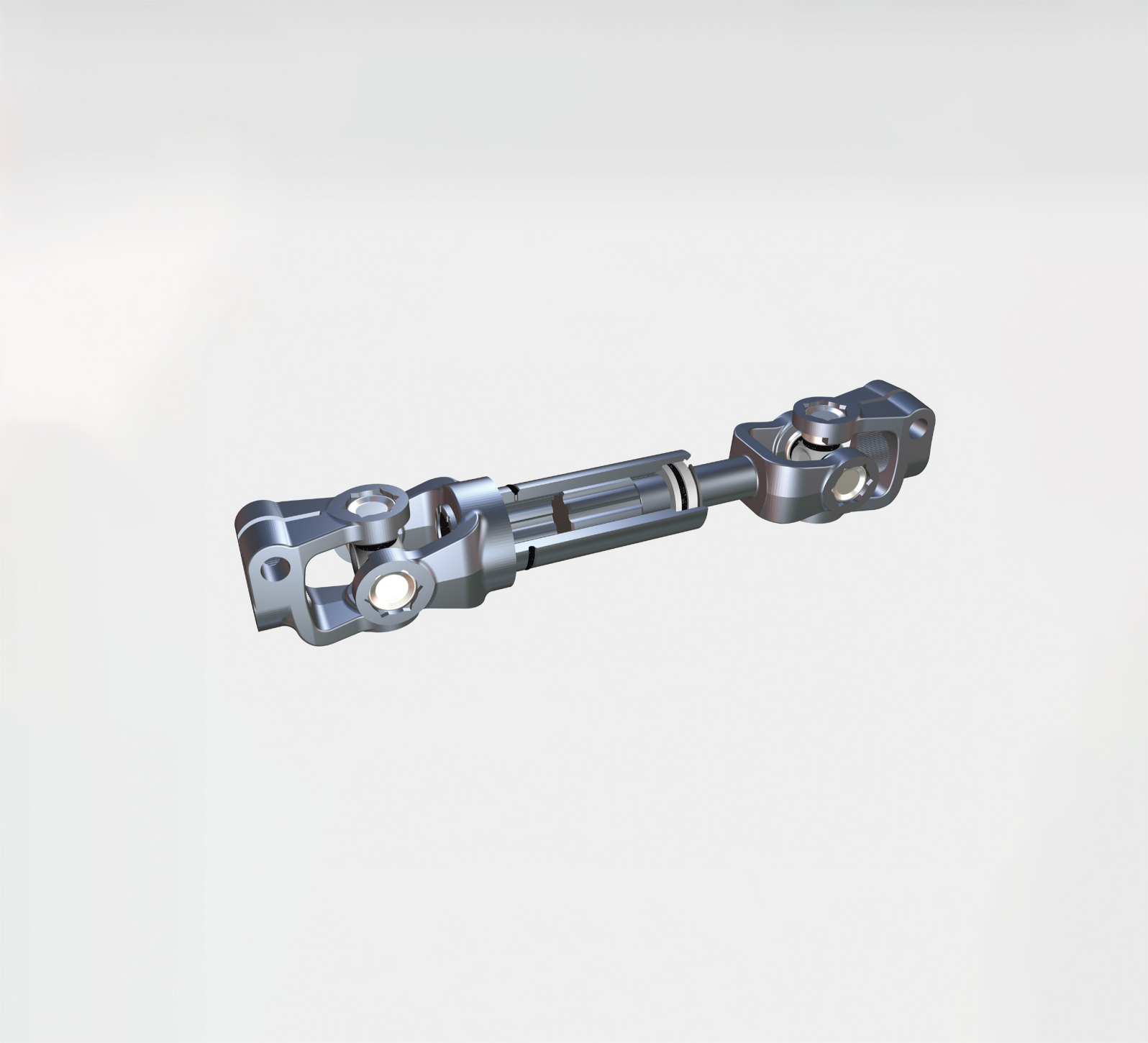

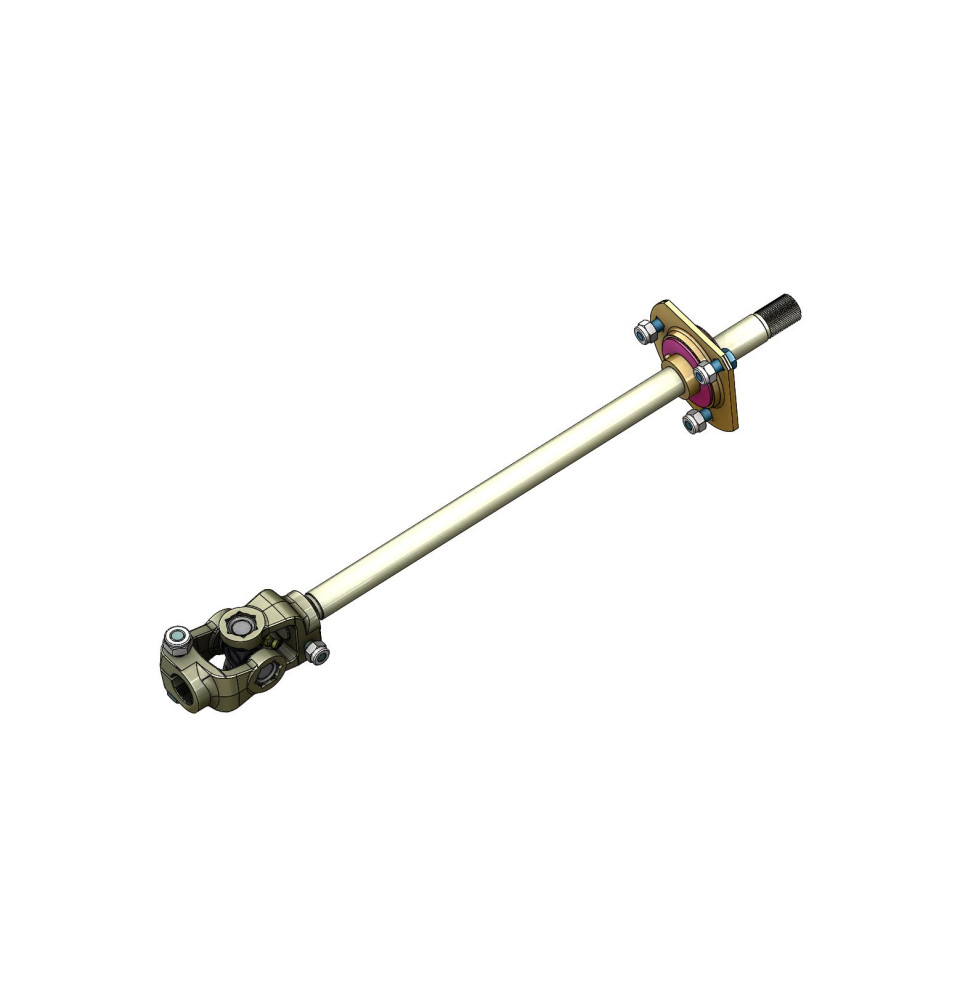

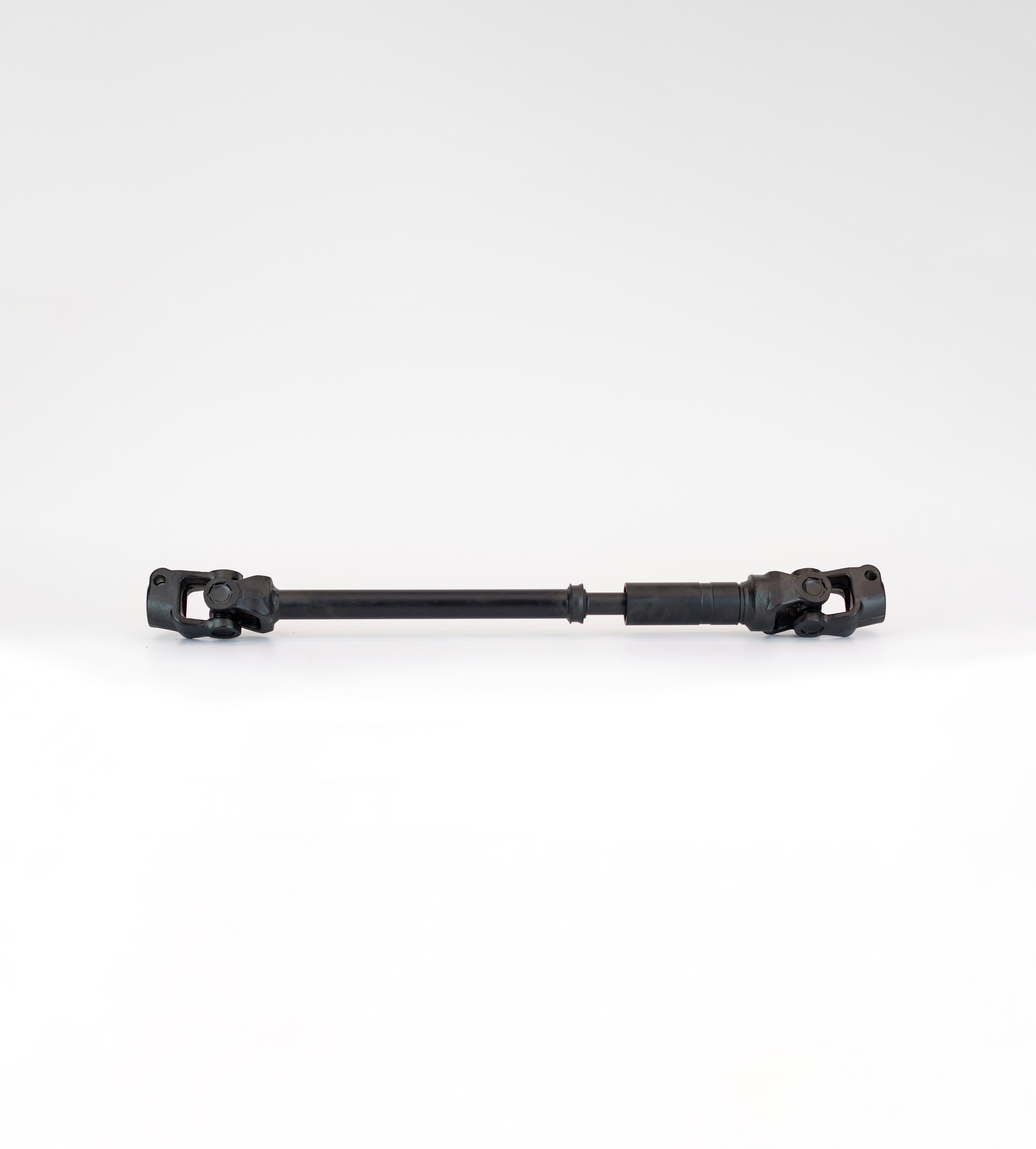

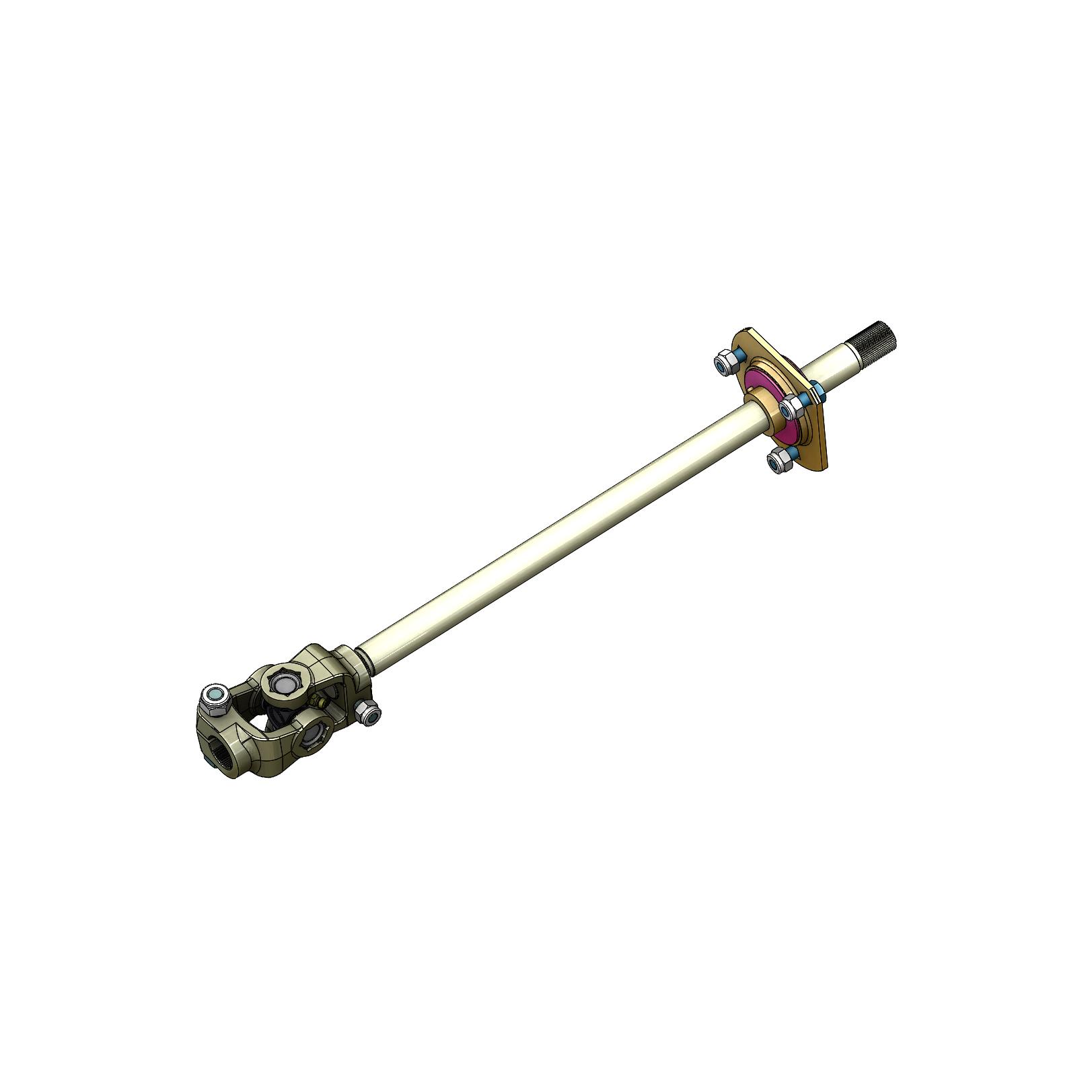

Sliding Steering Shafts
Enhancing vehicle performance and safety with Pailton Engineering’s sliding steering shafts
At Pailton Engineering, we design and manufacture high-quality sliding steering shafts tailored to meet the unique demands of various industries including commercial and military vehicles.
Our engineering team can design sliding steering shafts to any specified length and configuration to suit your vehicle's requirements.
Technical specifications
• Working angle: 35 degrees
• Maximum torque: 332 ft-lbs. (450 newton meters)
• Fatigue load: 125 ft-lbs. (170 newton meters)
• Designs adhere to relevant ZGN and SMMT specifications, from 1 x 36 for US standards to 1 x 79 for EU standards.
• Wide range of interface options and serration specifications.
• Detachable or fixed universal joints.
Design flexibility
We understand that different applications require different maintenance regimes. Some vehicles, such as those that may encounter wading scenarios, need components designed for regular maintenance.
To address this, we incorporate grease fittings/zerks to allow regular lubrication at set maintenance intervals. We also design sliding steering shafts with gaiters and covers for ingress protection.
Regreasing options
The bearings within the universal joints can have regrease points on both sides. Within the tube arrangement, there can be an additional grease port if necessary.
Alternatively, some applications favor “grease for life.” Pailton Engineering can provide sealed units, designed for longevity with no maintenance.
Customization
Our shafts can also accommodate phasing. We can calculate the ideal angle of the intermediate shaft for the installation envelope. This ensures optimal performance in a range of applications.
The design includes a stroke within the component. This provides a working envelope that can accommodate any adjustment above it. For example, if the steering column has tilt and telescopic adjustment, the sliding steering shaft will adjust accordingly.
To discuss your requirements, contact us today for a free consultation.
